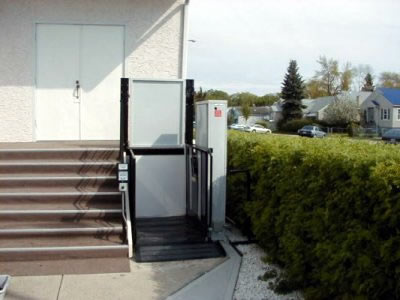

About the AmeriGlide Atlas Commercial Vertical Platform Lift: The Atlas Commercial vertical platform is the ideal solution where a vertical platform lift is needed in the public sector. For instance, if you want to increase access to your facility or meet ADA rules, then the Atlas Commercial lift is what you need. It features a direct drive worm-gear motor, innovative soft touch controls, and maintenance free operation. The Atlas Commercial comes completely pre-wired, so all you have to do is plug it into a standard 110V, 15A outlet.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Atlas Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Atlas Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
- Lifting Capacity: 550 lb
- Standard Lift Height: 96"
- Maximum Lift Height: 144"
- Portable: No
- Arrives Assembled: No
- Drive System: Direct Worm-Gear & Screw-Nut
- Optional Drive Systems: None
- Battery Powered Option: Yes
- Constant Pressure Platform Control: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: Audible Alarm Included
- Keyed Platform Control: Included
- Call-Send Controls: Included One Direction with Key x2, Optional Two Direction Toggle, Two Direction Toggle with Key
- Platform Type: Solid
- Platform Size: 34" x 54"
- Optional Platform Sizes: 40" x 54"
- Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Adjacent Access
- Upper Landing Gate: Optional
- Upper Access Ramp: None Available
- Lower Access Ramp: 18" Fixed Toeplate
- Grab Rail: Optional
- Guard Panel: Included
- Maximum Stops: 3
-
Lifting Height
-
96" Maximum Lift Height$0.00
-
120" Maximum Lift Height$571.42
-
144" Maximum Lift Height$1,321.42
-
-
Tower Orientation
-
Tower On The Left$0.00
-
Tower On The Right$0.00
-
-
Power Source
-
AC Powered$0.00
-
AC Powered with DC Battery Backup (Batteries Not Included)$1,571.95
-
-
Platform Size
-
34" x 54" Platform$0.00
-
40" x 54" Platform (For Adjacent Access Only)$0.00
-
-
Platform Access
-
Straight Through$0.00
-
Adjacent Access$228.58
-
Same Side Entry / Exit (also requires Solid End Wall)$471.43
-
-
Platform Gate
-
No Platform Gate$0.00
-
Platform Gate$478.58
-
-
Platform Controls
-
Paddle Controls with Emergency Stop Button$0.00
-
-
Platform Control Options
-
Keylock for Platform Controls$0.00
-
Audible Emergency Alarm & Light Package with Backlit Emergency Stop Button$0.00
-
-
Platform Options
-
18" Toeplate for Ground to Platform Transition$0.00
-
Full Length Side Walls$0.00
-
Solid Platform$0.00
-
Solid Platform with Safety Pan$214.29
-
Solid End Wall$314.29
-
Inside Grab Bar - 48"$107.15
-
-
Landing Controls
-
Upper Keyed Pushbutton Call Control$0.00
-
Lower Keyed Pushbutton Call Control$0.00
-
Additional Pushbutton Call Control (each)$135.00
-
Additional Keyed Pushbutton Call Control (each)$230.00
-
Additional Toggle Call & Send Control (each)$195.00
-
Additional Keyed Toggle Call & Send Control (each)$285.00
-
-
Landing Gate
-
Left Swing Upper Landing Gate$507.15
-
Right Swing Upper Landing Gate$507.15
-
Lower Non-Fire Door with Interlock$2,107.15
-
Lower Fire Door with Interlock$3,728.58
-
Upper Non-Fire Door with Interlock$2,107.15
-
Upper Fire Door with Interlock$3,728.58
-
-
Landing Gate Options
-
Oversized Upper Landing Gate Upcharge$378.58
-
-
Interlocks
-
Upper and Lower Interlocks$0.00
-
Additional Interlocks (each)$450.00
-
-
Additional Options
-
3rd Stop Wiring Charge$450.00
-
Batteries for Backup System$366.95
-
-
Additional Delivery Services
-
Trucking Terminal or Commercial Location with Loading Dock$0.00
-
Liftgate Delivery, 28" & 52" Units Only$279.00
-
Limited Access Delivery Charge$109.00
-
AK, HI, PR, or International - Please Call for Quote$0.00
-
