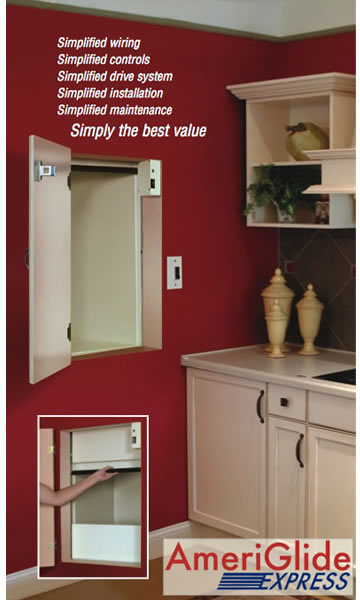

About the AmeriGlide Express Dumbwaiter: The AmeriGlide Express was made to meet two goals: it should be easier to install than the alternatives and it should be economical to own. With those goals in mind, the AmeriGlide Express uses a special drive train system where the entire drive is preinstalled on the underside of the car. In addition, the car chassis system is preinstalled on a section of the track. All of this means that the installation process has been greatly simplified, cutting up to a full day of installation time. This simple design also gives you long-term reliability and a lower overall cost. AmeriGlide backs this up with a 2-year parts warranty and a 5-year drive train warranty.

20" wide x 20" deep x 30" high standard car
(custom sizes available up to 32" x 32" x 42")
Durable ivory powder coated steel panel walls and doors (stainless steel available)
Car and drive system are factory installed on a section of track
Automatic, low voltage control switches
Low voltage hoistway door interlocks
Standard and final limit switches
Plug-in temporary bypass control to facilitate installation and maintenance

General Specifications:

Car interior dimensions - 20" wide x 20" deep x 30" high
- custom sizes available up to 32" x 32" x 42"
Finish - Car interior and doors feature a durable ivory powder coat finish
Capacity - 100 lbs. (available up to 150 lbs.)
Travel - Up to 28'
Track - Extruded aluminum
Stops - 2 or 3
Speed 20 feet per minute
Hoistway door interlocks - G.A.L. interlocks or electromechanical interlocks
Controls - 2 Call-Send controls, 24V
Cable - Aircraft cable rated at 1,800 lb. breaking strength
Motor - 1/3 hp, 90 VDC motor
Warranty - 2 year warranty on parts and 5 years on the drive train
Electric supply - 115 VAC grounded outlet
Designed to meet ANSI standards

Car Configuration
- Single Opening - Front

  $0.00
- Single Opening - Left

  $0.00
- Single Opening - Right

  $0.00
- Straight Through

  $285.72
- 90° Opening - Left and Front

  $428.58
- 90° Opening - Right and Front

  $428.58
Stops
- 2 Stops

  $0.00
- 3 Stops

  $428.58
- 4 Stops

  $857.15
Options
- Intermediate Car Shelf

  $142.86
- Floor Mount Drive Unit (includes Remote Mount Control Pkg)

  $500.00
- Remote Mount Control Package

  $357.15
- Automatic Homing Device

  $250.00
Call-Send Control Options
- Keylocks (per control)

  $50.00
- "Car Here" Indicators (per control)

  $71.43
Car Size
- 20" wide x 20" deep x 30" high (100 lb. capacity)

  $0.00
- 24" wide x 24" deep x 30" high (150 lb. capacity)

  $285.72
- 30" wide x 30" deep x 36" high (200 lb. capacity)

  $500.00
- Custom

  $928.58
Custom Car Measurement
- Width (min. 16" - max. 30")

  $0.00
- Depth (min. 16" - max. 30")

  $0.00
- Height (30" or 36")

  $0.00
Weight Capacity
- 100 lb. Capacity

  $0.00
- 150 lb. Capacity

  $142.86
- 200 lb. Capacity

  $214.29
Panels
- Ivory Powder Coated

  $0.00
- Stainless Steel

  $1,214.29
Interlocks
- GAL's (2 units)

  $0.00
- Additional Landing Openings - Includes GAL, Call-Send, & Wiring (each)

  $178.58
- EMI's - 24V AC - Required for 90° Cars (each)

  $285.72
- No Interlocks - Wired for EMI

  $0.00
Unfinished Maple Hoistway Doors
- Landing Doors (each)

  $321.43
- Machine Access Doors (each)

  $285.72
Travel Measurements
- 1st Floor Sill Height

  $0.00
- 1st Floor to 2nd Floor (inches)

  $0.00
- 2nd Floor Sill Height

  $0.00
- 2nd Floor to 3rd Floor (inches)

  $0.00
- 3rd Floor Sill Height

  $0.00
- 3rd Floor to 4th Floor (inches)

  $0.00
- 4th Floor Sill Height

  $0.00
Total Travel
- Up to 12'

  $0.00
- 12' to 20'

  $214.29
- 20' to 28'

  $428.58
Hoistway Door Swing 1st Floor
- 1st Floor - Right Hand Swing

  $0.00
- 1st Floor - Left Hand Swing

  $0.00
Hoistway Door Swing 2nd Floor
- 2nd Floor - Right Hand Swing

  $0.00
- 2nd Floor - Left Hand Swing

  $0.00
Hoistway Door Swing 3rd Floor
- 3rd Floor - Right Hand Swing

  $0.00
- 3rd Floor - Left Hand Swing

  $0.00
- Door Swing - N/A

  $0.00
Hoistway Door Swing 4th Floor
- 4th Floor - Right Hand Swing

  $0.00
- 4th Floor - Left Hand Swing

  $0.00
- Door Swing - N/A

  $0.00
1st Floor Hoistway Door Location
- Left

  $0.00
- Front

  $0.00
- Right

  $0.00
2nd Floor Hoistway Door Location
- Left

  $0.00
- Front

  $0.00
- Right

  $0.00
3rd Floor Hoistway Door Location
- Left

  $0.00
- Front

  $0.00
- Right

  $0.00
4th Floor Hoistway Door Location
- Left

  $0.00
- Front

  $0.00
- Right

  $0.00
