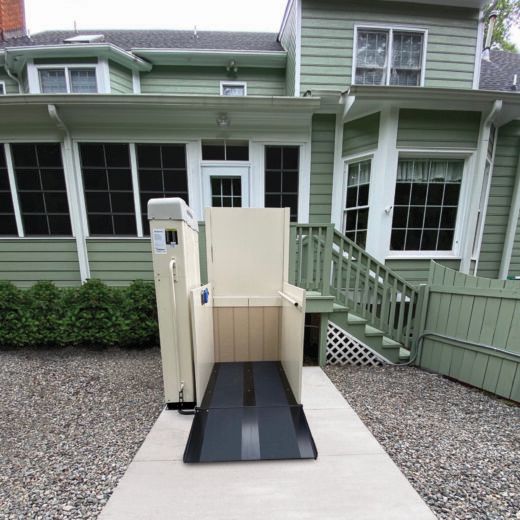

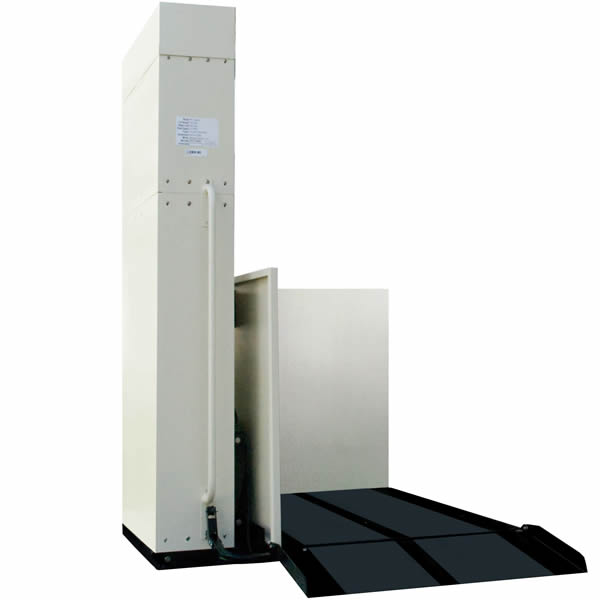

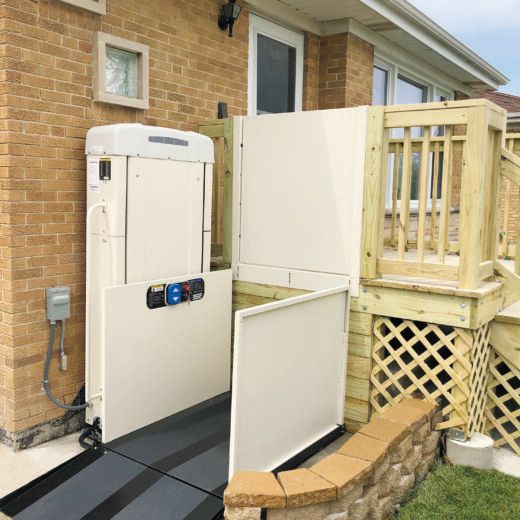

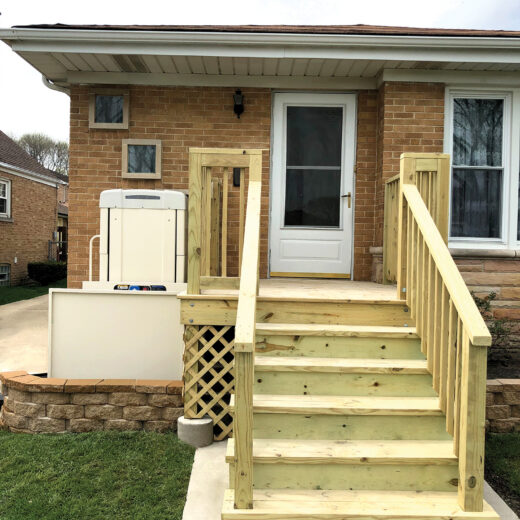

About the AmeriGlide Hercules II Residential Vertical Platform Lift: The Hercules II Residential gives more people the opportunity to purchase a vertical platform lift thanks to its cost effective design. It features a 600 pound capacity, a solid platform, a safety pan, and a screw drive. The Hercules II Residential requires some assembly, but this takes most customers less than an hour to perform. It meets ASME A18.1, Section 5 (Private Residence Vertical Platform Lifts) and CSA B44.1 / ASME 17.5 (Elevator and Escalator Electrical Equipment) safety requirements.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
Additional Images
- Lifting Capacity: 600 lb
- Standard Lift Height: 53"
- Maximum Lift Height: 171"
- Lift Speed (FPM): 10
- Portable: No
- Arrives Assembled: No
- Drive System: 53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive
- Optional Drive Systems: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Control: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: Optional Audible Alarm
- Keyed Platform Control: Optional
- Call-Send Controls: Optional Non-Keyed & Keyed Call-Send
- Platform Type: Solid with Non-Skid Coating
- Platform Size: 36" x 48" Platform (34" Usable Width)
- Optional Platform Sizes: 36" x 54", 36" x 60", 42" x 54" (40" Usable Width)
- Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, Adjacent Access
- Upper Landing Gate: Optional
- Upper Access Ramp: None Available
- Lower Access Ramp: Automatic Folding, Optional Fixed
- Grab Rail: Included
- Guard Panel: 36", Optional 42"
- Maximum Stops: 3
-
Lifting Height
-
53" Max Lift Height, Acme Screw Drive$0.00
-
77" Max Lift Height, Acme Screw Drive$730.00
-
101" Max Lift Height, Acme Screw Drive$1,840.00
-
125" Max Lift Height, Acme Screw Drive$3,450.00
-
149" Max Lift Height, Ball Screw Drive$5,250.00
-
171" Max Lift Height, Ball Screw Drive$6,630.00
-
-
Crating & Assembly
-
No Crating - Some assembly is required.$0.00
-
36" x 48" or 36" x 54" Platform$0.00
-
53" Unit Shipped Crated & Fully Assembled$461.95
-
36" x 60" or 42" x 54" Platform - Requires Extra Large Crate$0.00
-
53" Unit Shipped Crated & Fully Assembled$690.95
-
-
Tower Orientation
-
Tower On The Left$0.00 -
Tower On The Right$0.00
-
-
Power Source
-
AC Powered$0.00
-
DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.$999.95
-
-
Electronics
-
A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.$0.00
-
Standard Electronics Control Board$0.00
-
A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.$0.00
-
42" high side walls require a Commercial Electronics Control Board$0.00
-
Commercial Electronics Control Board$308.95
-
Ball Screw Drive Models Include A Commercial Electronics Control Board$0.00
-
-
Platform Type
-
36" x 48" Straight Thru (34" Usable Width)$0.00
-
36" x 54" Straight Thru (34" Usable Width)$153.95
-
36" x 60" Straight Thru (34" Usable Width)$244.95
-
42" x 54" Straight Thru (40" Usable Width)$491.95
-
36" x 54" 90 Degree (34" Usable Width)$367.95
-
36" x 60" 90 Degree (34" Usable Width)$490.95
-
42" x 54" 90 Degree (40" Usable Width)$736.95
-
-
Platform Access
-
Straight Thru or 90 Degree$0.00
-
Same Side Entry & Exit - Lift height must be 101" or greater.$367.95
-
-
Platform Gate
-
Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.$0.00
-
Platform gates require 42" high side walls (found below).$0.00
-
No Platform Gate$0.00
-
Left Swing 36" Wide Straight Thru Platform Gate with Interlock$613.95
-
Right Swing 36" Wide Straight Thru Platform Gate with Interlock$613.95
-
Left Swing 42" Wide Straight Thru Platform Gate with Interlock$859.95
-
Right Swing 42" Wide Straight Thru Platform Gate with Interlock$859.95
-
Left Swing 90 Degree Platform Gate with Interlock$984.95
-
Right Swing 90 Degree Platform Gate with Interlock$984.95
-
-
Platform Controls
-
Paddle Controls with Emergency Stop Button$0.00
-
-
Platform Control Options
-
Emergency Alarm & Lighted Button$208.95
-
Keylocks for Controls$33.95
-
-
Platform Options
-
Solid Platform with Safety Pan$0.00
-
Inside Grab Bar$0.00
-
42" high side walls are required for lifts 8' and taller.$0.00
-
42" high side walls are required for ANY lift with a platform gate.$0.00
-
42" high side walls require a Commercial Electronics Control Board$0.00
-
36" High Side Walls$0.00
-
42" High Side Walls$153.95
-
-
Ramp Type & Pit Switch
-
Automatic Ramp$0.00
-
Fixed Ramp$0.00
-
No Ramp with Pit Switch Option$121.95
-
-
Landing Controls
-
Call/Send Control Station (each)$119.00
-
Wireless Call/Send Control Stations (pair)$479.00
-
Keylocks for Controls (each)$34.00
-
-
Landing Gate
-
Landing gates below include an interlock and a call/send control built into the gate.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)$809.00
-
Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)$979.00
-
Keylocks for Controls (each)$34.00
-
Landing gates below include an interlock only.$0.00
-
Left Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Right Swing 36" Wide Landing Gate with Interlock Only (each)$739.00
-
Left Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Right Swing 42" Wide Landing Gate with Interlock Only (each)$909.00
-
Keylocks for Controls (each)$34.00
-
-
Fire Rated Doors
-
No Door$0.00
-
Fire-Rated Hoistway Door with EMI - Left (each)$2,079.00
-
Fire-Rated Hoistway Door with EMI - Right (each)$2,079.00
-
Fire-Rated Hoistway Door with Electric Strike - Left (each)$2,219.00
-
Fire-Rated Hoistway Door with Electric Strike - Right (each)$2,219.00
-
-
Interlocks
-
Surface mount EMI interlocks below are for a customer provided door or gate.$0.00
-
Left Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Right Swing Top Landing Door/Gate EMI Interlock (each)$409.00
-
Flush mount electric strike interlocks below are for a customer provided door or gate.$0.00
-
Top Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Metal Frame (each)$409.00
-
Top Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Bottom Landing Electric Strike Interlock - Wood Frame (each)$409.00
-
Other Interlock Options$0.00
-
Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)$139.00
-
Wiring For Interlock (per landing)$159.00
-
-
Accessories
-
Anchor Bolt Kit$0.00
-
Tower Braces$154.95
-
3rd Stop Wiring Charge$492.95
-
Phone Jack$137.95
-
Emergency Light$137.95
-
Fascia Panel (per foot)$59.00
-
Automatic Door Opener - Requires Upgraded Electronics$2,349.00
-
-
Additional Delivery Services
-
Free Liftgate Service on 53" Units As Requested$0.00
-
| 2 | ||
|
|
|
0 |
|---|---|---|
|
|
|
1 |
|
|
|
1 |
|
|
|
0 |
|
|
|
0 |
Sort by
This lift gave me my life back. |
|
|
Jun 3, 2010 1:03 PM
|
|
|---|---|
| Deb from Madison, WI would recommend this to a friend. | |
| A Little About Myself | Disabled |
| Pros | Safe & Sturdy |
| Cons | |
| Service & Delivery | Prompt delivery, but product was different than what was ordered (entry on wrong side). |
| Easy way to negotiate the steps to get outside with my power chair. | |
| 5 of 5 people found this review helpful | |
|
Does the job. |
|
|
Apr 4, 2010 9:07 PM
|
|
|---|---|
| None from Cedar Rapid, Iowa would recommend this to a friend. | |
| A Little About Myself | Wheelchair user |
| Pros | Sturdy |
| Cons | Bulky & Heavy |
| I use this vertical platform lift to get in and out of the garage. Ramp takes up too much room. | |
| 2 of 2 people found this review helpful | |
