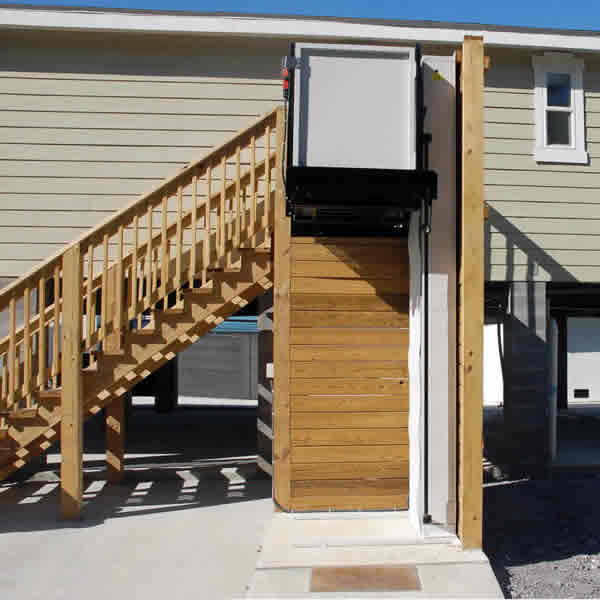

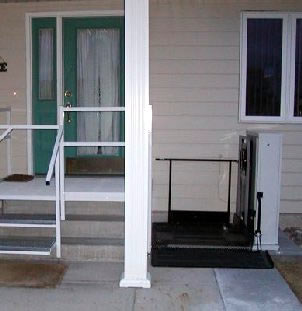

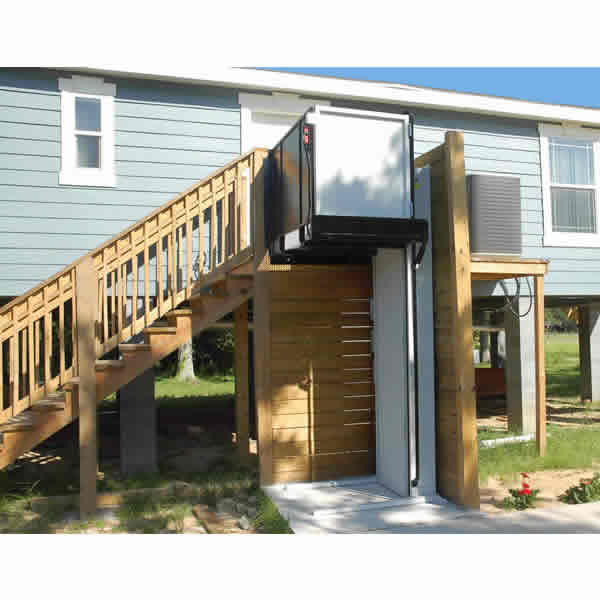

About the AmeriGlide Atlas Vertical Platform Lift - Residential Tower: The Residential Tower is the ideal vertical platform lift for home use where an individual cannot climb stairs from the ground to the main floor. It features a direct drive worm-gear motor, innovative soft touch controls, and maintenance free operation. The Residential Tower comes completely pre-wired, so all you have to do is plug it into a standard 110V, 15A outlet.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
About AmeriGlide Vertical Platform Lifts: AmeriGlide Vertical Platform Lifts are designed to meet US and Canadian safety standards and can be easily adapted to a variety of situations.
Additional Images
- Lifting Capacity: 550 lb
- Standard Lift Height: 72"
- Maximum Lift Height: 144"
- Portable: No
- Arrives Assembled: No
- Drive System: Direct Worm-Gear & Screw-Nut
- Optional Drive Systems: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Control: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: None Available
- Keyed Platform Control: Included
- Call-Send Controls: Optional Call-Send, Call-Send with Key, Toggle, Toggle with Key
- Platform Type: Expanded Metal
- Platform Size: 34" x 54"
- Optional Platform Sizes: 40" x 54"
- Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Adjacent Access
- Upper Landing Gate: Optional
- Upper Access Ramp: None Available
- Lower Access Ramp: Automatic Folding
- Grab Rail: Included
- Guard Panel: Optional
- Maximum Stops: 3
-
Lifting Height
-
72" Maximum Lift Height$0.00
-
96" Maximum Lift Height$1,700.00
-
120" Maximum Lift Height$2,250.00
-
144" Maximum Lift Height$3,000.00
-
-
Tower Orientation
-
Tower On The Left$0.00
-
Tower On The Right$0.00
-
-
Power Source
-
AC Powered$0.00
-
AC Powered with DC Battery Backup (Batteries Not Included)$1,571.95
-
-
Platform Size
-
34" x 54" Platform$0.00
-
40" x 54" Platform (For Adjacent Access Only)$0.00
-
-
Platform Access
-
Straight Through$0.00
-
90° Adjacent Access$228.58
-
Same Side Entry / Exit (requires Solid End Wall)$471.43
-
-
Platform Gate
-
No Platform Gate$0.00
-
Platform Gate with Interlock$928.58
-
-
Platform Controls
-
Paddle Controls with Emergency Stop Button$0.00
-
-
Platform Control Options
-
Keylock for Platform Controls$0.00
-
Backlit Emergency Stop Button$100.00
-
-
Platform Options
-
Automatic Ramp for Ground to Platform Transition$0.00
-
Solid Hand Rail$185.72
-
Solid End Wall$314.29
-
Control Wall Extension$314.29
-
Solid Platform$271.43
-
Solid Platform with Safety Pan$485.72
-
Inside Grab Bar - 48"$107.15
-
-
Landing Controls
-
Pushbutton Call Control (each)$135.00
-
Keyed Pushbutton Call Control (each)$232.50
-
Toggle Call & Send Control (each)$195.00
-
Keyed Toggle Call & Send Control (each)$285.00
-
-
Landing Gate
-
No Landing Gate$0.00
-
Left Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control$1,185.72
-
Right Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control$1,185.72
-
Left Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control$1,242.86
-
Right Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control$1,242.86
-
-
Landing Gate Options
-
Oversized Upper Landing Gate Upcharge$378.58
-
-
Interlocks
-
Additional Interlock (each)$450.00
-
-
Other Options
-
3 Stop Wiring Charge$450.00
-
Batteries for Backup System$366.95
-
-
Additional Delivery Services
-
Trucking Terminal or Commercial Location with Loading Dock$0.00
-
Liftgate Delivery, 28" & 52" Units Only$279.00
-
Limited Access Delivery Charge$109.00
-
AK, HI, PR, or International - Please Call for Quote$0.00
-
